Innolume提供780-1310nm波长范围内的光纤隔离器的广泛产品组合。隔离器可以与我们公司购买的任何单模光纤耦合设备（激光器、SLD、SOA、增益模块）一起提供。在这种情况下，设备以隔离器为特征，测量报告显示OI输出的性能。可以对设备进行拼接，以防止FC/APC连接器处的额外损耗和反馈。
产品特点高隔离度、 低插入损耗、 阻止快速轴(Fast axis blocked)
产品型号PMOI-780-SS-11-BB
应用领域光源隔离(Light-sourcesisolation)
产品单价登录查看请咨询客服获得优惠价格
到货日期请咨询客服获得货期
产品库存请咨询客服
中心波长 插入损耗 隔离度
780nm 0.5dB 35dB
规格 | ||||
参数 | Min值 | 典型值 | Max值 | 单位 |
单双级 | 单级 | |||
中心波长 | 780 | nm | ||
峰值隔离度 | 25 | 35 | dB | |
插入损耗 | 0.5 | 1.3 | dB | |
回波损耗（输入/输出） | 45/45 | 50/50 | dB | |
消光比 | 20 | dB | ||
光功率 (CW) | 500 | mW | ||
Max拉伸载荷 | 5 | N | ||
工作温度 | -5 | 50 | °C | |
储存温度 | -40 | 75 | °C | |
光纤规格
参数 | 熊猫 PM850 | 单位 |
模场直径 | 5.5±0.5 | μm |
截止波长 | 650-800 | nm |
包层直径 | 125±1 | μm |
涂层直径 | 245±15 | μm |
堆芯到包层偏移 | ≤0.5 | μm |
长度（每个端口） | 1.0 ± 0.2 | m |
接口 | FC/APC | |
连接器与熊猫光纤对齐: | ||
通用参数

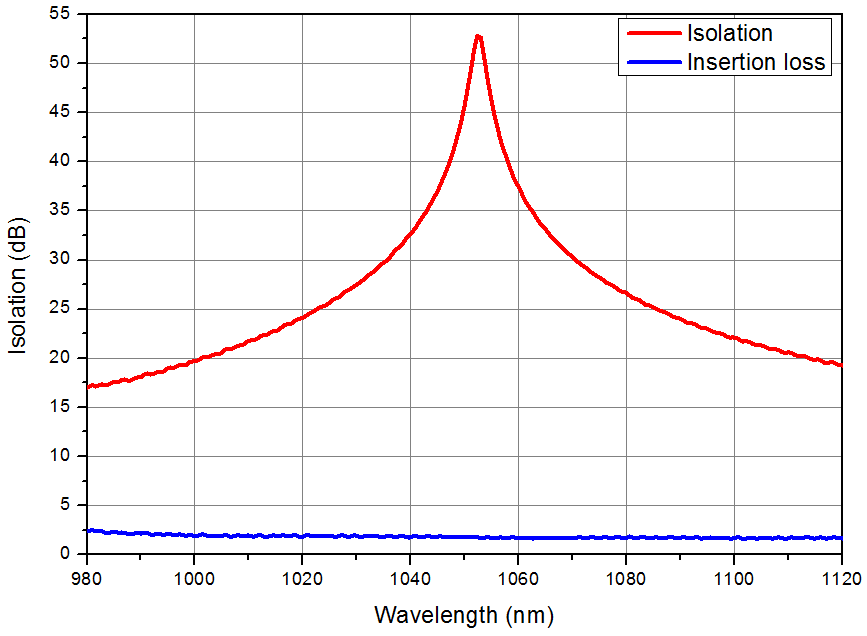

光纤隔离器典型参数
* @Max10mW反向光功率。
型号 | 单/双极 Stage | 波长 | 峰值隔离度* | 插入损耗 | 回波损耗 | 消光比 | 输入光功率 (CW) (Direct optical power) | 光纤类型 | 封装尺寸(LWH) |
nm | dB | dB | dB | dB | W | mm | |||
PMOI-780-SS | single | 780 | 30 | 1 | 50 | 20 | 0.3 | PM780 | 91x27x28 |
PMOI-808-SS | single | 808 | 30 | 1 | 50 | 20 | 0.3 | PM780 | 91x27x28 |
PMOI-850-SS | single | 850 | 35 | 1 | 50 | 20 | 0.3 | PM850 | 91x27x28 |
PMOI-980-SS | single | 980 | 35 | 1 | 50 | 20 | 0.3 | PM980 | 91x27x28 |
PMOI-1025-SS-HP | single | 1025 | 30 | 1.2 | 50 | 20 | 1 | PM980 | 118x37x35 |
HIOI-1025-SS-HP | single | 1025 | 30 | 1.2 | 50 | 1 | HI1060 | 118x37x35 | |
PMOI-1030-SS-HP | single | 1030 | 26 | 1 | 50 | 20 | 1 | PM980 | 118x37x35 |
HIOI-1030-SS-HP | single | 1030 | 26 | 1 | 50 | 1 | HI1060 | 118x37x35 | |
PMOI-1030-SS | single | 1030 | 22 | 4.7 | 55 | 23 | 0.08 | PM980 | 55×5.5×5.5 |
HIOI-1030-SS | single | 1030 | 22 | 4 | 55 | 0.08 | HI1060 | 55×5.5×5.5 | |
PMOI-1040-SS-HP | single | 1040 | 35 | 1 | 50 | 20 | 1 | PM980 | 118x37x35 |
HIOI-1040-SS-HP | single | 1040 | 35 | 1 | 50 | 1 | HI1060 | 118x37x35 | |
PMOI-1040-SS | single | 1040 | 30 | 4.2 | 55 | 23 | 0.1 | PM980 | 55×5.5×5.5 |
HIOI-1040-SS | single | 1040 | 30 | 4.2 | 55 | 23 | 0.1 | PM980 | 55×5.5×5.5 |
PMOI-1050-SS-HP | single | 1050 | 50 | 2.5 | 50 | 20 | 1 | PM980 | 118x37x35 |
PMOI-1050-SS | single | 1050 | 40 | 2.9 | 55 | 23 | 0.15 | PM980 | 55×5.5×5.5 |
PMOI-1055-SS-HP | single | 1055 | 35 | 1 | 50 | 20 | 1 | PM980 | 118x37x35 |
HIOI-1055-SS-HP | single | 1055 | 35 | 1 | 50 | 1 | HI1060 | 118x37x35 | |
PMOI-1055-SS | single | 1055 | 40 | 2.6 | 55 | 23 | 0.2 | PM980 | 55×5.5×5.5 |
HIOI-1055-SS | single | 1055 | 40 | 2.6 | 55 | 0.2 | HI1060 | 55×5.5×5.5 | |
HIOI-1064-SS-HP | single | 1064 | 26 | 1 | 55 | 1-5 | HI1060 | 35x5x5 | |
PMOI-1064-SS | single | 1064 | 40 | 1.8 | 55 | 23 | 0.3 | PM980 | 55×5.5×5.5 |
HIOI-1064-SS | single | 1064 | 40 | 1.8 | 55 | 0.3 | HI1060 | 55×5.5×5.5 | |
PMOI-1064-DS | double | 1064 | 55 | 3.2 | 55 | 20 | 0.3 | PM980 | 55×5.5×5.5 |
PMOI-1085-SS-HP | single | 1085 | 35 | 1 | 50 | 20 | 1 | PM980 | 118x37x35 |
HIOI-1085-SS-HP | single | 1085 | 35 | 1 | 50 | 1 | HI1060 | 118x37x35 | |
PMOI-1085-SS | single | 1085 | 30 | 1.8 | 55 | 23 | 0.3 | PM980 | 55×5.5×5.5 |
HIOI-1085-SS | single | 1085 | 30 | 1.8 | 55 | 0.3 | HI1060 | 55×5.5×5.5 | |
PMOI-1095-SS-HP | single | 1095 | 30 | 1 | 50 | 20 | 1 | PM980 | 118x37x35 |
HIOI-1095-SS-HP | single | 1095 | 30 | 1 | 50 | 1 | HI1060 | 118x37x35 | |
PMOI-1095-SS | single | 1085 | 28 | 1.8 | 55 | 23 | 0.3 | PM980 | 55×5.5×5.5 |
HIOI-1095-SS | single | 1085 | 28 | 1.8 | 55 | 0.3 | HI1060 | 55×5.5×5.5 | |
PMOI-1120-SS | single | 1120 | 30 | 1.7 | 50 | 21 | 0.3 | PM980 | 55×5.5×5.5 |
PMOI-1120-DS | double | 1120 | 40 | 2.8 | 50 | 21 | 0.3 | PM980 | 55×5.5×5.5 |
PMOI-1150-SS | single | 1150 | 20 | 2 | 55 | 20 | 0.3 | PM980 | 55×5.5×5.5 |
PMOI-1150-DS | double | 1150 | 30 | 2.8 | 55 | 20 | 0.3 | PM980 | 55×5.5×5.5 |
PMOI-1178-DS | double | 1178 | 25 | 2 | 50 | 20 | 0.35 | PM980 | 55×5.5×5.5 |
PMOI-1188-DS | double | 1188 | 20 | 2.1 | 50 | 20 | 0.35 | PM980 | 55×5.5×5.5 |
PMOI-1250-DS | double | 1250 | 30 | 1.2 | 55 | 23 | 0.4 | PM980 | 55×5.5×5.5 |
PMOI-1310-DS | double | 1310 | 58 | 0.6 | 55 | 23 | 0.5 | PM1300 | 55×5.5×5.5 |
型号说明
PMOI-780-SS-①①-②②
①Connector Type on Port 1 & 2: 1 - FC/APC, N - none
②Fiber Jacket on Port 1 & 2: B - 250um Panda Fiber, L - 900um Loose Tube Panda Fiber
Example: PMOI-780-SS-N1-BB
