LAYERTEC 啁啾镜对平面 340 - 440nm (用于飞秒激光)

(Chirped Mirror Pair)啁啾镜用于补偿超短激光脉冲与色散相关的传播时间差。如果 GDD 曲线中的振荡很强，则需要啁啾镜对（由两个啁啾镜组成）。对于高带宽的镜子尤其如此。啁啾镜的 GDD 曲线并不代表直线曲线，而是显示振荡。其中，这些强度有多强取决于光谱带宽。对于小于同类布拉格镜带宽的 GDD 带宽，振荡相当小。另一方面，具有高带宽的镜子表现出强烈的 GDD 振荡。

产品特点

产品型号148921

应用领域

产品单价登录查看请咨询客服获得优惠价格

到货日期请咨询客服获得货期

产品库存请咨询客服

加入询价单在线咨询

相关产品

主要参数
详细参数
特性曲线
可选配置表

资料下载

主要参数

核心参数

直径厚度 高反射率

25.0(-0.1)mm 6.35(±0.10)mm >99%

尺寸图

详细参数

啁啾镜对按型号82条

型号	规格	正/背面形状	涂层
Chirped Mirror Pair 148921 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRp(5°,340-440nm)>99% GDD(5°,340-440nm)=-25fs²
Chirped Mirror Pair 148920 Corning 7980	40 mm  x 10 mm with marked corner t = 12.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRp(5°,340-440nm)>99% GDDp(5°,340-440nm)=-25fs²
Chirped Mirror Pair 102504 Corning 7980 2F or equal	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,360-480nm)>99.5%, GDD=-15fs²
Chirped Mirror Pair 103851 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,360-480nm)>99.5% GDDu(0-8°,360-480nm)=15fs²
Chirped Mirror Pair 107549 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) concave r = 250 mm Rear Side (S1) plane	Front Side (S2) PR(0°,430-690nm)=99.5(±0.3%), GDD=-20fs² Rear Side (S1) AR(0°,430-690nm)
Chirped Mirror Pair 148545 Corning 7980	40 mm  x 10 mm with marked corner t = 12.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,470-810nm)>99.7% GDD(0°,470-810nm)=-40fs²
Chirped Mirror Pair 109812 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,480-640nm)>99.85%, GDD=-70--40fs²
Chirped Mirror Pair 109811 Corning 7980	40 mm  x 10 mm with marked corner t = 12.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,480-640nm)>99.85%, GDD=-70--40fs²
Chirped Mirror Pair 109936 Corning 7980 2F or equal	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,480-660nm)>99.85%, GDD=-22fs²
Chirped Mirror Pair 109937 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,480-660nm)>99.85%, GDD=-22fs²
Chirped Mirror Pair 109935 Corning 7980	40 mm  x 10 mm with marked corner t = 12.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,480-660nm)>99.85%, GDD=-22fs² Rear Side (S1) HR(0°,440-660nm)>99.85%, GDD=-22fs²
Chirped Mirror Pair 109384 Corning 7980	45 mm  x 15 mm t = 12.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,480-660nm)>99.85%, GDD=-22fs²
Chirped Mirror Pair 134205 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRu(7°,500-1000nm)>99.4%
Chirped Mirror Pair 111346 Corning 7980	40 mm  x 10 mm with marked corner t = 12.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRu(7°,500-1000nm)>99.4%
Chirped Mirror Pair 116433 Corning 7980	45 mm  x 15 mm t = 12.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRu(7°,500-1000nm)>99.4%
Chirped Mirror Pair 183448 Corning 7980 2F or equal	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRu(5°,510-920nm)>99.7% GDD(5°,520-900nm)=-40fs²
Chirped Mirror Pair 149666 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRu(5°,510-920nm)>99.7% GDD(5°,520-900nm)=-40fs²
Chirped Mirror Pair 148731 Corning 7980	40 mm  x 10 mm with marked corner t = 12.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRu(5°,510-920nm)>99.7% GDD(5°,520-900nm)=-40fs²
Chirped Mirror Pair 146883 Corning 7980 2F or equal	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,540-1040nm)>99.6%
Chirped Mirror Pair 146887 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,540-1040nm)>99.6%
Chirped Mirror Pair 147519 Corning 7980	∅ = 50 mm t = 9.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,540-1040nm)>99.6%
Chirped Mirror Pair 146851 Corning 7980	40 mm  x 10 mm with marked corner t = 12.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,540-1040nm)>99.6%
Chirped Mirror Pair 146885 Corning 7980	45 mm  x 15 mm t = 12.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,540-1040nm)>99.6%
Chirped Mirror Pair 107864 Corning 7980 2F or equal	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) concave r = 200 mm Rear Side (S1) plane	Front Side (S2) HR(0°,570-1040nm)>99.7%, GDD=-40fs²
Chirped Mirror Pair 102155 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,600-1000nm)>99.6%, GDD=-40fs²
Chirped Mirror Pair 104408 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) concave r = 100 mm Rear Side (S1) plane	Front Side (S2) HR(0°,600-1000nm)>99.6%, GDD=-40fs²
Chirped Mirror Pair 103804 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) concave r = 150 mm Rear Side (S1) plane	Front Side (S2) HR(0°,600-1000nm)>99.6%, GDD=-40fs²
Chirped Mirror Pair 102222 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) concave r = 1,000 mm Rear Side (S1) plane	Front Side (S2) HR(0°,600-1000nm)>99.6%, GDD=-40fs²
Chirped Mirror Pair 103803 Corning 7980 2F or equal	∅ = 25.4 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,600-1000nm)>99.6%, GDD=-40fs²
Chirped Mirror Pair 108579 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) concave r = 700 mm Rear Side (S1) plane	Front Side (S2) HR(0°,600-1020nm)>99.8%, GDD=-50fs²
Chirped Mirror Pair 101568 Corning 7980 2F or equal	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) concave r = 100 mm Rear Side (S1) plane	Front Side (S2) HR(0°,640-1000nm)>99.8%, GDD=-70fs² R(0°,510-545nm)<15% Rear Side (S1) AR(0°,532nm)<0.25%
Chirped Mirror Pair 102098 Corning 7980 2F or equal	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) concave r = 75 mm Rear Side (S1) plane	Front Side (S2) HR(0°,640-1000nm)>99.8% R(0°,510-545nm)<15% GDD(0°,720-1000nm)=-70fs² Rear Side (S1) AR(0°,510-545nm)<0.25%
Chirped Mirror Pair 102349 Corning 7980 2F or equal	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) concave r = 175 mm Rear Side (S1) plane	Front Side (S2) HR(0°,650-1000nm)>99.8%, GDD=-50fs²
Chirped Mirror Pair 102348 Corning 7980 2F or equal	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) concave r = 200 mm Rear Side (S1) plane	Front Side (S2) HR(0°,650-1000nm)>99.8%, GDD=-50fs²
Chirped Mirror Pair 141931 Corning 7980 2F or equal(Standard item)	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRu(0-10°,670-970nm)>99.8%
Chirped Mirror Pair 141933 Corning 7980 2F or equal(Standard item)	∅ = 25 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRu(0-10°,670-970nm)>99.8%
Chirped Mirror Pair 141934 Corning 7980(Standard item)	40 mm  x 10 mm with marked corner t = 12.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRu(0-10°,670-970nm)>99.8%
Chirped Mirror Pair 142351 Corning 7980 2F or equal(Standard item)	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) concave r = 38 mm Rear Side (S1) plane	Front Side (S2) HRs,p(0-10°,670-970nm)>99.8% Rs,p(0-10°,515-535nm)<10% Rear Side (S1) ARs,p(0-10°,500-545nm)<0.2%
Chirped Mirror Pair 142350 Corning 7980 2F or equal(Standard item)	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) concave r = 50 mm Rear Side (S1) plane	Front Side (S2) HRs,p(0-10°,670-970nm)>99.8% Rs,p(0-10°,515-535nm)<10% Rear Side (S1) ARs,p(0-10°,500-545nm)<0.2%
Chirped Mirror Pair 142349 Corning 7980 2F or equal(Standard item)	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) concave r = 75 mm Rear Side (S1) plane	Front Side (S2) HRs,p(0-10°,670-970nm)>99.8% Rs,p(0-10°,515-535nm)<10% Rear Side (S1) ARs,p(0-10°,500-545nm)<0.2%
Chirped Mirror Pair 142348 Corning 7980 2F or equal(Standard item)	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) concave r = 100 mm Rear Side (S1) plane	Front Side (S2) HRs,p(0-10°,670-970nm)>99.8% Rs,p(0-10°,515-535nm)<10% Rear Side (S1) ARs,p(0-10°,500-545nm)<0.2%
Chirped Mirror Pair 142347 Corning 7980 2F or equal(Standard item)	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) concave r = 125 mm Rear Side (S1) plane	Front Side (S2) HRs,p(0-10°,670-970nm)>99.8% Rs,p(0-10°,515-535nm)<10% Rear Side (S1) ARs,p(0-10°,500-545nm)<0.2%
Chirped Mirror Pair 152355 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRs,p(0-10°,670-970nm)>99.8% Rs,p(0-10°,515-535nm)<10% Rear Side (S1) ARs,p(0-10°,500-545nm)<0.2%
Chirped Mirror Pair 110119 Corning 7980 2F or equal	40 mm  x 10 mm t = 12.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,670-1020nm)>99.8% GDD(0°,730-850nm)=125fs²
Chirped Mirror Pair 110086 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,680-980nm)>99.6%, GDD=-80-50fs²
Chirped Mirror Pair 108243 Corning 7980	40 mm  x 10 mm with marked corner t = 12.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,680-980nm)>99.6%, GDD=-80-50fs²
Chirped Mirror Pair 103873 Corning 7980 2F or equal	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,680-1020nm)>99.8%, GDD=-50fs² R(0°,490-535nm)<5% Rear Side (S1) AR(0°,480-570nm)<0.25%
Chirped Mirror Pair 109088 Corning 7980 2F or equal	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) concave r = 150 mm Rear Side (S1) plane	Front Side (S2) HR(0°,680-1020nm)>99.8%, GDD=-50fs² R(0°,490-535nm)<5% Rear Side (S1) AR(0°,480-570nm)<0.25%
Chirped Mirror Pair 106811 Corning 7980	∅ = 12.7 mm t = 9.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,700-900nm)>99.8%, GDD=-50fs²
Chirped Mirror Pair 161071 Corning 7980 2F or equal	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRp(7°,700-900nm)>99.9% GDDp(7°,700-900nm)=-120fs²
Chirped Mirror Pair 148923 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRp(7°,700-900nm)>99.9% GDDp(7°,700-900nm)=-120fs²
Chirped Mirror Pair 168830 Corning 7980	40 mm  x 10 mm with marked corner t = 12.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRp(7°,700-900nm)>99.9% GDDp(7°,700-900nm)=-120fs²
Chirped Mirror Pair 103028 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,700-900nm)>99.9%, GDD=-65fs²
Chirped Mirror Pair 100469 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,700-930nm)>99.9%, GDD=-65fs²
Chirped Mirror Pair 102760 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) concave r = 100 mm Rear Side (S1) plane	Front Side (S2) HR(0°,700-930nm)>99.9%, GDD=-65fs²
Chirped Mirror Pair 109347 Corning 7980	40 mm  x 10 mm with marked corner t = 12.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,700-950nm)>99.85%, GDD=-60--30fs²
Chirped Mirror Pair 109348 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,700-970nm)>99.85% GDD(0°,700-950nm)=-60--30fs²
Chirped Mirror Pair 109346 Corning 7980	45 mm  x 15 mm t = 12.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,700-970nm)>99.85% GDD(0°,700-950nm)=-60--30fs²
Chirped Mirror Pair 103467 Corning 7980 2F or equal	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,700-980nm)>99.7%, GDD=-70fs² R(0°,515-545nm)<10% Rear Side (S1) AR(0°,480-570nm)<0.25%
Chirped Mirror Pair 103469 Corning 7980 2F or equal	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) concave r = 30 mm Rear Side (S1) plane	Front Side (S2) HR(0°,700-980nm)>99.7%, GDD=-70fs² R(0°,515-545nm)<10% Rear Side (S1) AR(0°,480-570nm)<0.25%
Chirped Mirror Pair 103468 Corning 7980 2F or equal	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) concave r = 50 mm Rear Side (S1) plane	Front Side (S2) HR(0°,700-980nm)>99.7%, GDD=-70fs² R(0°,515-545nm)<10% Rear Side (S1) AR(0°,480-570nm)<0.25%
Chirped Mirror Pair 106590 Corning 7980 2F or equal	∅ = 12.7 mm t = 9.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,710-940nm)>99.9% GDD(0-12°,740-870nm)=-350-350fs²
Chirped Mirror Pair 104983 Corning 7980 2F or equal	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) concave r = 50 mm Rear Side (S1) plane	Front Side (S2) HR(0°,720-1000nm)>99.8%, GDD=-70fs² R(0°,510-545nm)<15% Rear Side (S1) AR(0°,532nm)<0.25%
Chirped Mirror Pair 108335 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) concave r = 600 mm Rear Side (S1) plane	Front Side (S2) HR(0°,720-1000nm)>99.8%, GDD=-70fs² R(0°,510-545nm)<15% Rear Side (S1) AR(0°,532nm)<0.2%
Chirped Mirror Pair 105105 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) concave r = 800 mm Rear Side (S1) plane	Front Side (S2) HR(0°,720-1000nm)>99.8%, GDD=-70fs² R(0°,510-545nm)<15% Rear Side (S1) AR(0°,532nm)<0.2%
Chirped Mirror Pair 141920 Corning 7980 2F or equal(Standard item)	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRs,p(0-10°,725-875nm)>99.8%, GDD=-110fs²
Chirped Mirror Pair 141882 Corning 7980 2F or equal(Standard item)	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRs,p(0-10°,725-875nm)>99.8%, GDD=-40fs²
Chirped Mirror Pair 141884 Corning 7980 2F or equal(Standard item)	∅ = 25 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRs,p(0-10°,725-875nm)>99.8%, GDD=-40fs²
Chirped Mirror Pair 141919 Corning 7980 2F or equal(Standard item)	∅ = 25 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRs,p(0-10°,725-875nm)>99.8%, GDD=-110fs²
Chirped Mirror Pair 141918 Corning 7980(Standard item)	40 mm  x 10 mm with marked corner t = 12.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRs,p(0-10°,725-875nm)>99.8%, GDD=-110fs²
Chirped Mirror Pair 141886 Corning 7980(Standard item)	40 mm  x 10 mm with marked corner t = 12.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRs,p(0-10°,725-875nm)>99.8%, GDD=-40fs²
Chirped Mirror Pair 141887 Corning 7980 2F or equal(Standard item)	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRs,p(0-10°,725-875nm)>99.9%, GDD=-80fs²
Chirped Mirror Pair 141888 Corning 7980 2F or equal(Standard item)	∅ = 25 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRs,p(0-10°,725-875nm)>99.9%, GDD=-80fs²
Chirped Mirror Pair 141891 Corning 7980(Standard item)	40 mm  x 10 mm with marked corner t = 12.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRs,p(0-10°,725-875nm)>99.9%, GDD=-80fs²
Chirped Mirror Pair 106886 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) concave r = 1,500 mm Rear Side (S1) plane	Front Side (S2) HR(0°,730-970nm)>99.8%, GDD=-70fs²
Chirped Mirror Pair 110121 Corning 7980 2F or equal	40 mm  x 10 mm t = 12.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HRu(0-5°,770-990nm)>99.8%, GDD=-120fs²
Chirped Mirror Pair 102759 Corning 7980 2F or equal	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) concave r = 150 mm Rear Side (S1) plane	Front Side (S2) HR(0°,1040-1460nm)>99.8%, GDD=-120fs²
Chirped Mirror Pair 107437 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,1040-1460nm)>99.8%, GDD=-120fs²
Chirped Mirror Pair 108947 Corning 7980 2F or equal	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,1060-1600nm)>99.8%, GDD=-150fs²
Chirped Mirror Pair 108948 Corning 7980 2F or equal	∅ = 12.7 mm t = 6.35 mm	Front Side (S2) concave r = 150 mm Rear Side (S1) plane	Front Side (S2) HR(0°,1060-1600nm)>99.8%, GDD=-150fs²
Chirped Mirror Pair 108949 Corning 7980 2F or equal	∅ = 25 mm t = 6.35 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,1060-1600nm)>99.8%, GDD=-150fs²
Chirped Mirror Pair 156961 Corning 7980	40 mm  x 10 mm with marked corner t = 12.5 mm	Front Side (S2) plane Rear Side (S1) plane	Front Side (S2) HR(0°,1060-1600nm)>99.8%, GDD=-150fs²

特性曲线

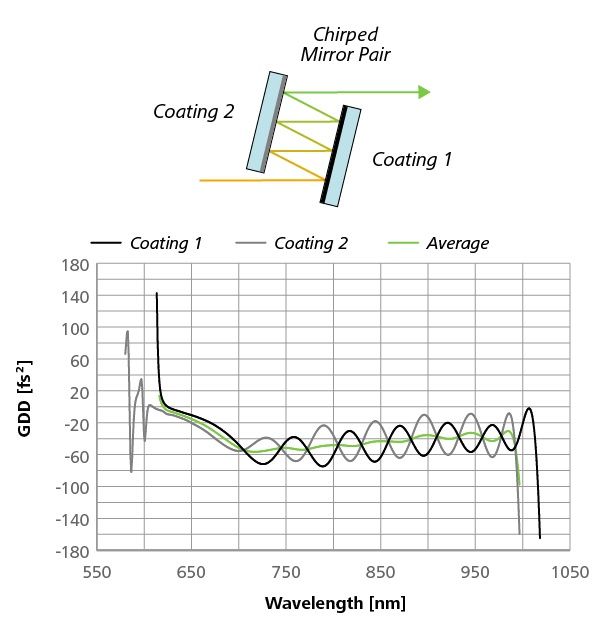

负色散镜对的 GDD 光谱

65bf4afd67044 (1).jpg

可以通过使用相应的镜对来实现校正。它们由两个具有相反 GDD 曲线的不同涂层介电镜组成，激光束可以根据需要在两个镜之间来回反射（见图）。这些镜子针对小入射角进行了优化，从而可以实现大量反射。
