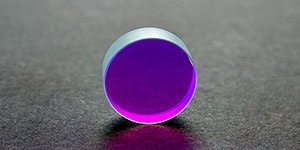

    LAYERTEC 超快激光熔融石英啁啾反射镜 平面

    当超短激光脉冲通过光学系统时，其形状会发生变化。 由于色散与波长有关，每个单独的波都会有不同程度的延迟，并且传播时间会出现差异。 结果，激光脉冲变宽并且脉冲能量降低。 为了中和这种效应，使用了啁啾镜。 LAYERTEC 生产特殊介电系统（反射镜、泵浦反射镜、短通或长通滤波器、解耦器等），可根据客户要求在 200 – 5000 nm 波长范围内对相位响应（即负或正 GDD）产生适应性影响 。 具有简单布拉格反射镜（经典 Lambda/4 反射镜）或更大带宽的相位校正反射系统称为啁啾反射镜。 另一方面，用于仅在几纳米带宽上具有（高）负 GDD 的 ps 激光器的相位校正镜被称为 GTI 镜。 带宽与布拉格反射镜大小相同的啁啾反射镜通常可以在不增加 GDD 振荡的情况下进行计算和制造。 所需带宽越大，GDD的振荡越强。在这些情况下，我们原则上建议通过啁啾镜像对等其他光学元件对GDD振荡进行相互补偿。

    产品特点

    产品型号109072

    应用领域

    产品单价登录查看请咨询客服获得优惠价格

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    加入询价单 在线咨询

    相关产品

    资料下载

    主要参数
  • 核心参数

  • 直径 厚度 高反射率

    25.0(-0.1)mm 6.35(±0.10)mm >99.7%

  • 尺寸图
    • 详细参数

    LAYERTEC 超快激光啁啾反射镜

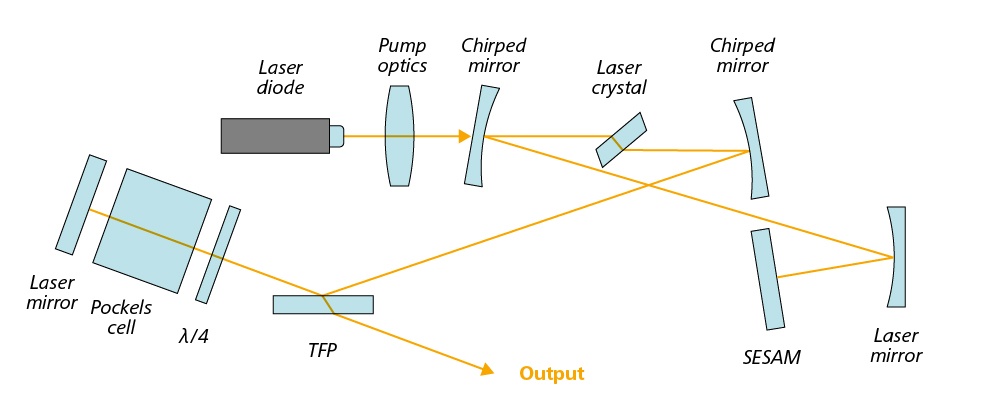

    带普克尔斯盒的倾腔皮秒激光器的示意


    带宽与布拉格反射镜大小相同的啁啾反射镜通常可以在不增加 GDD 振荡的情况下进行计算和制造。

    所需带宽越大，GDD 的振荡越强。在这些情况下，我们原则上建议使用其他光学元件（例如通过啁啾镜对）来相互补偿该 GDD 振荡



    啁啾反射镜236条

    编号

    外形

    双面形状

    涂层

    Laser mirror 109072
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,340-480nm)>99.7%, GDD=-25fs²



    Chirped Mirror 100688
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,350-450nm)>99.8%, GDD=-25fs²



    Chirped Mirror 109813
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,480-640nm)>99.85%, GDD=-70--40fs²



    Laser mirror 139481
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,505-525nm)>99.9%, GDD=-100fs²



    Chirped Mirror 128916
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,520-540nm)>99.9%, GDD=-375fs²



    Laser mirror 103954
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 50 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,620-1120nm)>99.9%



    Laser mirror 137632
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 500 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,620-1120nm)>99.9%



    Chirped Mirror 103516
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 100 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,630-1140nm)>99.85%, GDD=-200-100fs²



    Chirped Mirror 103518
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 125 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,630-1140nm)>99.85%, GDD=-200-100fs²



    Chirped Mirror 103517
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 150 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,630-1140nm)>99.85%, GDD=-200-100fs²



    Chirped Mirror 103519
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 500 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,630-1140nm)>99.85%, GDD=-200-100fs²



    Chirped Mirror 103520
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 750 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,630-1140nm)>99.85%, GDD=-200-100fs²



    Chirped Mirror 103521
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 1,000 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,630-1140nm)>99.85%, GDD=-200-100fs²



    Short Wave Pass Filter 103003
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,640-1000nm)>99.8%, GDD=-70fs²

    R(0°,510-550nm)<10%



    Chirped Mirror 107389
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,660-980nm)>99.7%

    R(0°,500-550nm)<5%


    Rear Side   (S1)

    AR(0°,450-550nm)<0.25%



    Laser mirror 110408
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    convex
    r = 1,000 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,660-1130nm)99.9%

    HR(0°)



    Chirped Mirror 142010
    Corning 7980(Standard item)

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,670-970nm)>99.9%, =-50



    Laser mirror 102007
    Corning 7980 2F or equal

    ∅ = 12.7 mm

    Front Side  (S2)
    concave
    r = 38 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,670-1080nm)>99.9%

    GDD(0°,780-1010nm)=-120-40fs²



    Laser mirror 102009
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 18 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,670-1080nm)>99.9%

    GDD(0°,780-1010nm)=-120-40fs²



    Laser mirror 102008
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 30 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,670-1080nm)>99.9%

    GDD(0°,780-1010nm)=-120-40fs²



    Chirped Mirror 104611
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,700-800nm)>99.9%

    GDD(0°,700-880nm)=-100-40fs²



    Chirped Mirror 100472
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 100 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,700-870nm)>99.9%, GDD=-40fs²



    Chirped Mirror 100470
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,700-870nm)>99.9%

    GDD(0°,725-880nm)=-40fs²



    Chirped Mirror 100720
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,700-970nm)>99.8%, GDD=-70fs²



    Chirped Mirror 102287
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 30 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,700-970nm)>99.8%, GDD=-70fs²



    Chirped Mirror 100927
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 100 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,700-970nm)>99.8%, GDD=-70fs²



    Chirped Mirror 102283
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    convex
    r = 1,000 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,700-970nm)>99.8%, GDD=-70fs²



    Chirped Mirror 105630
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,700-970nm)>99.8%, GDD=-70fs²



    Chirped Mirror 108746
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,700-1000nm)>99.9%, GDD=-50fs²



    Chirped Mirror 108750
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 1,200 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,700-1000nm)>99.9%, GDD=-50fs²



    Chirped Mirror 108749
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 1,600 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,700-1000nm)>99.9%, GDD=-50fs²



    Chirped Mirror 108753
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 2,000 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,700-1000nm)>99.9%, GDD=-50fs²



    Chirped Mirror 108748
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 2,800 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,700-1000nm)>99.9%, GDD=-50fs²



    Chirped Mirror 108751
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 3,000 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,700-1000nm)>99.9%, GDD=-50fs²



    Chirped Mirror 108752
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 4,000 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,700-1000nm)>99.9%, GDD=-50fs²



    Chirped Mirror 108756
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    convex
    r = 2,000 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,700-1000nm)>99.9%, GDD=-50fs²



    Chirped Mirror 108757
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    convex
    r = 3,000 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,700-1000nm)<99.9%, GDD=-50fs²



    Chirped Mirror 108761
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    convex
    r = 3,200 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,700-1000nm)>99.9%, GDD=-50fs²



    Chirped Mirror 108758
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    convex
    r = 4,000 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,700-1000nm)<99.9%, GDD=-50fs²



    Chirped Mirror 108763
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    convex
    r = 5,200 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,700-1000nm)>99.9%, GDD=-50fs²



    Chirped Mirror 108759
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    convex
    r = 6,000 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,700-1000nm)<99.9%, GDD=-50fs²



    Chirped Mirror 103025
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,715-915nm)>99.8%, GDD=-40fs²



    Chirped Mirror 103026
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 100 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,715-915nm)>99.8%, GDD=-40fs²



    Chirped Mirror 107871
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 3.05 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-12°,720-880nm)>99.9%, GDD=-40fs²



    Chirped Mirror 121788
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    convex
    r = 1,000 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-12°,720-880nm)>99.9%, GDD=-40fs²



    Chirped Mirror 107690
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-12°,720-880nm)>99.9%, GDD=-40fs²



    Short Wave Pass Filter 102292
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 75 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,720-880nm)>99.9%, GDD=-40fs²

    R(0°,514-532nm)<5%


    Rear Side   (S1)

    AR(0°,514-532nm)<0.2%



    Short Wave Pass Filter 102302
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,720-880nm)>99.9%

    HT(0°,514-532nm)5%


    Rear Side   (S1)

    AR(0°,514-532nm)<0.2%



    Chirped Mirror 110976
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,720-880nm)>99.99%, GDD=-10fs²



    Chirped Mirror 110978
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 9,000 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,720-880nm)>99.99%, GDD=-10fs²



    Laser mirror 109879
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,720-880nm)>99.99%, GDD=-10fs²


    Rear Side   (S1)

    AR(0°,720-880nm)<0.25%



    Chirped Mirror 109846
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 500 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,720-880nm)>99.99%, GDD=-10fs²


    Rear Side   (S1)

    AR(0°,720-880nm)<0.25%



    Laser mirror 109877
    Corning 7980 2F or equal

    ∅ = 50 mm
    t = 9.5 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,720-880nm)>99.99%, GDD=-10fs²



    Laser mirror 109878
    Corning 7980 2F or equal

    ∅ = 50 mm
    t = 9.5 mm

    Front Side  (S2)
    concave
    r = 4,000 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,720-880nm)<99.99%, GDD=-10fs²



    Laser mirror 110975
    Corning 7980 2F or equal

    ∅ = 50 mm
    t = 9.5 mm

    Front Side  (S2)
    concave
    r = 9,000 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,720-880nm)>99.99%, GDD=-10fs²



    Short Wave Pass Filter 102377
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,720-940nm)>99.9%, GDD=-40fs²

    R(0°,520-560nm)<5%


    Rear Side   (S1)

    AR(0°,532nm)0.1%



    Short Wave Pass Filter 102378
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,720-940nm)>99.9%, GDD=-40fs²

    R(0°,520-560nm)<5%


    Rear Side   (S1)

    AR(0°,532nm)<0.1%



    Turning Mirror 140208
    Corning 7980(Standard item)

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRp(45°,725-875nm)>99.8%, GDD=-40fs²



    Turning Mirror 140209
    Corning 7980 2F or equal(Standard item)

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRp(45°,725-875nm)>99.8%, GDD=-40fs²



    Turning Mirror 146566
    Corning 7980(Standard item)

    ∅ = 76.2 mm
    t = 12.5 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRp(45°,725-875nm)>99.8%, GDD=-40fs²



    Chirped Mirror 141243
    Corning 7980 2F or equal(Standard item)

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,725-875nm)>99.9%, GDD=-40fs²



    Chirped Mirror 141245
    Corning 7980 2F or equal(Standard item)

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,725-875nm)>99.9%, GDD=-40fs²



    Laser mirror 163884
    Corning 7980

    ∅ = 50 mm
    t = 9.5 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,725-875nm)>99.9%, GDD=-40fs²



    Chirped Mirror 146565
    Corning 7980(Standard item)

    ∅ = 50 mm
    t = 9.5 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRs,p(45°,725-875nm)>99.9%, GDD=-40fs²



    Chirped Mirror 101000
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,730nm)>99.9%, GDD=40fs²



    Chirped Mirror 100474
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,730-900nm)>99.9%, GDD=-40fs²

    R(0°,510-550nm)<5%


    Rear Side   (S1)

    AR(0°,514-532nm)<0.2%



    Chirped Mirror 100475
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 30 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,730-900nm)>99.9%, GDD=-40fs²

    R(0°,510-550nm)<5%


    Rear Side   (S1)

    AR(0°,514-532nm)<0.2%



    Chirped Mirror 100727
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane
    Wedge = 30ʹ

    Front Side   (S2)

    HR(0°,730-900nm)>99.9%, GDD=-40fs²

    R(0°,510-550nm)<5%


    Rear Side   (S1)

    AR(0°,514-532nm)<0.2%



    Chirped Mirror 100726
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,730-900nm)>99.9%, GDD=-40fs²

    R(0°,510-550nm)<5%


    Rear Side   (S1)

    AR(0°,514-532nm)<0.2%



    Short Wave Pass Filter 102653
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,730-1030nm)>99.8%, GDD=-50fs²

    R(0°,650-690nm)<5%


    Rear Side   (S1)

    AR(0°,600-700nm)<0.25%



    Short Wave Pass Filter 103286
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 50 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,730-1030nm)>99.8%, GDD=-50fs²

    R(0°,650-690nm)<5%


    Rear Side   (S1)

    AR(0°,650-690nm)<0.25%



    Short Wave Pass Filter 103287
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 100 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,730-1030nm)>99.8%, GDD=-50fs²

    R(0°,650-690nm)<5%


    Rear Side   (S1)

    AR(0°,600-700nm)<0.25%



    Laser mirror 107733
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,740-860nm)>99.8%, GDD=100fs²



    Chirped Mirror 103867
    Corning 7980 2F or equal

    ∅ = 50 mm
    t = 9.5 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,740-980nm)>99.9%, GDD=-70fs²



    Chirped Mirror 109577
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,750-850nm)>99.9%, GDD=-120fs²

    R(0°,532nm)<3%


    Rear Side   (S1)

    AR(0°,532nm)<0.2%



    Chirped Mirror 109579
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 38 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,750-850nm)>99.9%

    R(0°,532nm)<3%

    GDD(0°,750-840nm)=-120fs²


    Rear Side   (S1)

    AR(0°,532nm)<0.2%



    Chirped Mirror 109580
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 50 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,750-850nm)>99.9%

    R(0°,532nm)<3%

    GDD(0°,750-840nm)=-120fs²


    Rear Side   (S1)

    AR(0°,532nm)0.2%



    Chirped Mirror 100683
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,750-900nm)>99.9%, =-45



    Chirped Mirror 105632
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,750-1000nm)>99.8%, GDD=-70fs²



    Laser mirror 100559
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,750-1000nm)>99.8%, GDD=-70fs²



    Chirped Mirror 104631
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 250 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,760-930nm)>99.95%

    GDD(0°,760-860nm)=-20fs²



    Chirped Mirror 107604
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,770-795nm)>99.9%, GDD=-550fs²



    Chirped Mirror 108180
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,770-795nm)>99.9%, GDD=-550fs²



    Chirped Mirror 108487
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRp(0-10°,770-830nm)>99.9%, GDD=-150fs²



    Chirped Mirror 104170
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,780-805nm)>99.9%, GDD=-550fs²



    Laser mirror 104219
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,780-1010nm)>99.9%, GDD=-120-40fs²



    Laser mirror 102006
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 50 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,780-1010nm)>99.9%, GDD=-120-40fs²



    Chirped Mirror 102005
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 250 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,780-1010nm)>99.9%, GDD=-120-40fs²



    Chirped Mirror 102010
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,780-1010nm)>99.9%, GDD=-120-40fs²



    Chirped Mirror 104188
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,790-815nm)>99.9%, GDD=-550fs²



    Chirped Mirror 104189
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane
    Wedge = 30ʹ

    Front Side   (S2)

    HR(0°,790-815nm)>99.9%, GDD=-550fs²



    Chirped Mirror 103118
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,790-815nm)>99.9%, GDD=-550fs²



    Chirped Mirror 107439
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,940-1150nm)>99.9%, GDD=-55fs²



    Chirped Mirror 154323
    Corning 7980 2F or equal

    40 mm  x 10 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(5°,950-1120nm)>99.9%, GDD=-100fs²



    Chirped Mirror 107846
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,970-1100nm)>99.95%

    GDD(0°,1030nm)=-800fs²

    |GDD(0°,1060nm)|



    Chirped Mirror 103743
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 350 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,970-1120nm)>99.9%



    Chirped Mirror 102197
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 500 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,970-1120nm)>99.9%

    GDD(0°,1040nm)=-1300fs²



    Chirped Mirror 102163
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,980-1040nm)>99.9%, GDD=-250fs²



    Chirped Mirror 101848
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane
    Wedge = 30ʹ

    Front Side   (S2)

    HR(0°,980-1110nm)>99.9%, GDD=-100fs²



    Chirped Mirror 101849
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane
    Wedge = 30ʹ

    Front Side   (S2)

    HR(0°,980-1110nm)>99.9%, GDD=-100fs²



    Chirped Mirror 102164
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,990-1050nm)>99.9%, GDD=-250fs²



    Chirped Mirror 102624
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane
    Wedge = 30ʹ

    Front Side   (S2)

    HR(0°,990-1120nm)>99.9%, GDD=-55fs²



    Chirped Mirror 102625
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,990-1120nm)>99.9%, GDD=-55fs²



    Laser mirror 102749
    Quarzglas

    35 mm  x 10 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,990-1120nm)>99.9%, GDD=-55fs²



    Chirped Mirror 102750
    Corning 7980 2F or equal

    40 mm  x 10 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,990-1120nm)>99.9%, GDD=-55fs²



    Laser mirror 103296
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1000-1065nm)>99.9%, GDD=-100fs²



    Chirped Mirror 103297
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 50 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1000-1065nm)>99.9%, GDD=-100fs²



    Laser mirror 105157
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 75 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1000-1065nm)>99.9%, GDD=-100fs²



    Chirped Mirror 103299
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 100 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1000-1065nm)>99.9%, GDD=-100fs²



    Chirped Mirror 105156
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 150 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1000-1065nm)>99.9%, GDD=-100fs²



    Chirped Mirror 103298
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 200 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1000-1065nm)>99.9%, GDD=-100fs²



    Chirped Mirror 104728
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 300 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1000-1065nm)>99.9%, GDD=-100fs²



    Chirped Mirror 105155
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 500 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1000-1065nm)>99.9%, GDD=-100fs²



    Laser mirror 105158
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 3 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1000-1065nm)>99.9%, GDD=-100fs²



    Chirped Mirror 103300
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1000-1065nm)>99.9%, GDD=-100fs²



    Chirped Mirror 103301
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 100 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1000-1065nm)>99.9%, GDD=-100fs²



    Chirped Mirror 103302
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 200 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1000-1065nm)>99.9%, GDD=-100fs²



    Chirped Mirror 104234
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane
    Wedge = 30ʹ

    Front Side   (S2)

    HR(0°,1000-1080nm)>99.9%, GDD=-250fs²



    Chirped Mirror 103633
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane
    Wedge = 60ʹ

    Front Side   (S2)

    HR(0°,1000-1080nm)>99.9%, GDD=-250fs²



    Laser mirror 157453
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 500 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1000-1080nm)>99.9%, GDD=-250fs²



    Laser mirror 103732
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane
    Wedge = 30ʹ

    Front Side   (S2)

    HR(0°,1000-1080nm)>99.9%, GDD=-250fs²



    Chirped Mirror 102552
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1000-1080nm)>99.9%, GDD=-250fs²



    Chirped Mirror 103733
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 500 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1000-1080nm)>99.9%, GDD=-250fs²



    Laser mirror 103868
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1010-1080nm)>99.9%, GDD=-250fs²



    Chirped Mirror 121674
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane
    Wedge = 30ʹ

    Front Side   (S2)

    HR(0°,1015-1075nm)>99.9%, GDD=-500fs²



    Chirped Mirror 121675
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane
    Wedge = 30ʹ

    Front Side   (S2)

    HR(0°,1015-1075nm)>99.95%, GDD=-250fs²



    Chirped Mirror 107675
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1018-1038nm)>99.9%, GDD=-550fs²



    Chirped Mirror 106184
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1020-1030nm)>99.9%, GDD=-1300fs²



    Chirped Mirror 159336
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1020-1060nm)>99.9%, GDD=-375fs²



    Chirped Mirror 105286
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1020-1060nm)>99.9%

    GDD(0°,1020nm)=-320fs²

    GDD(0°,1060nm)=-250fs²



    Chirped Mirror 102127
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1020-1070nm)>99.9%, GDD=-375fs²



    Chirped Mirror 101550
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1020-1070nm)>99.9%, GDD=-375fs²



    Chirped Mirror 104637
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane
    Wedge = 30ʹ

    Front Side   (S2)

    HRu(0-12°,1020-1080nm)>99.9%, GDD=-250fs²



    Chirped Mirror 103870
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 200 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1020-1080nm)>99.9%, GDD=-200fs²



    Chirped Mirror 103871
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 400 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1020-1080nm)>99.9%, GDD=-200fs²



    Chirped Mirror 108455
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1020-1080nm)>99.9%, GDD=-300fs²



    Chirped Mirror 104636
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-12°,1020-1080nm)>99.9%, GDD=-250fs²



    Chirped Mirror 106362
    Corning 7980 2F or equal

    ∅ = 50 mm
    t = 9.5 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1020-1080nm)>99.9%, GDD=-250fs²



    Chirped Mirror 106475
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRp(0-10°,1025-1045nm)>99.9%, GDD=1000fs²



    Chirped Mirror 104595
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1025-1100nm)>99.9%, GDD=-250fs²



    Chirped Mirror 102408
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane
    Wedge = 30ʹ

    Front Side   (S2)

    HRu(0-10°,1030nm)>99.9%, GDD=-900fs²



    Chirped Mirror 104175
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1030nm)>99.9%, GDD=-550fs²



    Chirped Mirror 105196
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1030nm)>99.9%, GDD=-1000fs²



    Chirped Mirror 103236
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 750 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1030nm)>99.9%, GDD=-900fs²



    Chirped Mirror 102409
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1030nm)>99.9%, GDD=-900fs²



    Chirped Mirror 122227
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane
    Wedge = 30ʹ

    Front Side   (S2)

    HRu(0-10°,1030nm)>99.9%, GDD=-900fs²



    Chirped Mirror 105954
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1030nm)>99.9%, GDD=-1300fs²



    Chirped Mirror 101072
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1030nm)>99.9%, GDD=-550fs²



    Chirped Mirror 116539
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 350 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1030nm)>99.9%, GDD=-900fs²



    Chirped Mirror 109434
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 500 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1030nm)>99.9%, GDD=-900fs²



    Chirped Mirror 103237
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 750 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1030nm)>99.9%, GDD=-900fs²



    Chirped Mirror 110641
    Corning 7980

    40 mm  x 10 mm

    with marked corner

    t = 12.5 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(6°,1030nm)>99.9%, GDD=-10000fs²



    Chirped Mirror 105195
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRs,p(0-10°,1030nm)>99.9%, GDD=-1000fs²



    Laser mirror 105681
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane
    Wedge = 30ʹ

    Front Side   (S2)

    HRs(12°,1030nm)>99.9%, GDD=-1300fs²



    Chirped Mirror 102191
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1030nm)>99.95%, GDD=-1200fs²



    Chirped Mirror 141255
    Corning 7980 2F or equal(Standard item)

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRs,p(0-10°,1030nm)>99.95%, GDD=-550fs²



    Chirped Mirror 141260
    Corning 7980 2F or equal(Standard item)

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRs,p(0-10°,1030nm)>99.95%, GDD=-1000fs²



    Chirped Mirror 141250
    Corning 7980 2F or equal(Standard item)

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRs,p(0-10°,1030nm)>99.95%, GDD=-250fs²



    Chirped Mirror 141257
    Corning 7980 2F or equal(Standard item)

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRs,p(0-10°,1030nm)>99.95%, GDD=-550fs²



    Chirped Mirror 141251
    Corning 7980 2F or equal(Standard item)

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRs,p(0-10°,1030nm)>99.95%, GDD=-250fs²



    Chirped Mirror 141261
    Corning 7980 2F or equal(Standard item)

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRs,p(0-10°,1030nm)>99.95%, GDD=-1000fs²



    Chirped Mirror 110954
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1030nm)>99.98%, GDD=-550fs²



    Chirped Mirror 109396
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane
    Wedge = 30ʹ
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1030nm)>99.98%, GDD=-550fs²



    Chirped Mirror 128926
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 30 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1030nm)>99.98%, GDD=-550fs²



    Chirped Mirror 128928
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 50 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1030nm)>99.98%, GDD=-550fs²



    Chirped Mirror 128929
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 60 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1030nm)>99.98%, GDD=-550fs²



    Chirped Mirror 128930
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 75 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1030nm)>99.98%, GDD=-550fs²



    Chirped Mirror 164607
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 100 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1030nm)>99.98%, GDD=-550fs²



    Chirped Mirror 110142
    Corning 7980 2F or equal

    ∅ = 50 mm
    t = 9.5 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1030nm)>99.98%, GDD=-550fs²



    Chirped Mirror 106847
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-12°,1030-1040nm)>99.9%, GDD=-450fs²



    Chirped Mirror 102665
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-6°,1030-1040nm)>99.9%, GDD=-550fs²



    Chirped Mirror 128483
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 1,000 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-6°,1030-1040nm)>99.9%, GDD=-550fs²



    Chirped Mirror 106846
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-12°,1030-1040nm)>99.9%, GDD=-450fs²



    Laser mirror 104598
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1030-1040nm)>99.9%, GDD=-550fs²



    Chirped Mirror 101645
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-6°,1030-1040nm)>99.9%, GDD=-550fs²



    Chirped Mirror 106848
    Corning 7980 2F or equal

    ∅ = 50 mm
    t = 9.5 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1030-1040nm)>99.9%, GDD=-450fs²



    Chirped Mirror 104088
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1030-1090nm)>99.9%, GDD=-250fs²



    Chirped Mirror 109327
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(5°,1035nm)>99.7%, GDD=1800fs²



    Chirped Mirror 105544
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 250 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1035-1050nm)>99.8%, GDD=-1300fs²



    Chirped Mirror 105200
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1035-1055nm)>99.9%, GDD=-800fs²



    Chirped Mirror 107156
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 30 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1035-1055nm)>99.9%, GDD=-800fs²



    Chirped Mirror 105199
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 50 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1035-1055nm)>99.9%, GDD=-800fs²



    Chirped Mirror 105201
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1035-1055nm)>99.9%, GDD=-800fs²



    Chirped Mirror 102196
    Corning 7980 2F or equal

    ∅ = 12.7 mm

    Front Side  (S2)
    concave
    r = 350 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1040nm)>99.9%, GDD=-1300fs²



    Chirped Mirror 103664
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 3.05 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1040nm)>99.9%, GDD=-550fs²



    Chirped Mirror 102195
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1040nm)>99.9%, GDD=-1300fs²



    Chirped Mirror 105202
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 50 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1040nm)>99.9%, GDD=-550fs²



    Chirped Mirror 105755
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 50 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1040nm)>99.9%, GDD=-1000fs²



    Chirped Mirror 102198
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 750 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1040nm)>99.9%, GDD=-1300fs²



    Laser mirror 104685
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1040nm)>99.9%, GDD=-550fs²



    Chirped Mirror 104096
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1040nm)>99.9%, GDD=-1300fs²



    Chirped Mirror 105754
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1040nm)>99.9%, GDD=-1000fs²



    Chirped Mirror 103667
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1040nm)>99.9%, GDD=-550fs²



    Chirped Mirror 104166
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane
    Wedge = 30ʹ

    Front Side   (S2)

    HRu(0-10°,1040nm)>99.9%, GDD=-1300fs²



    Chirped Mirror 103744
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 500 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1040nm)>99.9%, GDD=-1300fs²



    Chirped Mirror 103745
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 750 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1040nm)>99.9%, GDD=-1300fs²



    Chirped Mirror 104190
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 1,500 mm
    Rear Side  (S1)
    plane
    Wedge = 30ʹ

    Front Side   (S2)

    HRu(0-10°,1040nm)>99.9%, GDD=-1300fs²



    Chirped Mirror 141273
    Corning 7980 2F or equal(Standard item)

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRs,p(0-10°,1040nm)>99.95%, GDD=-1000fs²



    Chirped Mirror 141269
    Corning 7980 2F or equal(Standard item)

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRs,p(0-10°,1040nm)>99.95%, GDD=-550fs²



    Chirped Mirror 141263
    Corning 7980 2F or equal(Standard item)

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRs,p(0-10°,1040nm)>99.95%, GDD=-250fs²



    Chirped Mirror 141270
    Corning 7980 2F or equal(Standard item)

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRs,p(0-10°,1040nm)>99.95%, GDD=-550fs²



    Chirped Mirror 141266
    Corning 7980 2F or equal(Standard item)

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRs,p(0-10°,1040nm)>99.95%, GDD=-250fs²



    Chirped Mirror 141274
    Corning 7980 2F or equal(Standard item)

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRs,p(0-10°,1040nm)>99.95%, GDD=-1000fs²



    Chirped Mirror 110759
    Corning 7980

    40 mm  x 10 mm
    t = 12.5 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1040-1042nm)>99.9%, GDD=-10000fs²



    Chirped Mirror 103669
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 3.05 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1040-1070nm)>99.9%, GDD=-500fs²



    Chirped Mirror 103668
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1040-1070nm)>99.9%, GDD=-500fs²



    Chirped Mirror 105527
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1040-1090nm)>99.8%, GDD=-550fs²



    Chirped Mirror 105844
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1040-1090nm)>99.8%, GDD=-550fs²



    Chirped Mirror 105233
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-14°,1045nm)>99.9%, GDD=-1200fs²



    Chirped Mirror 105232
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 50 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-14°,1045nm)>99.9%, GDD=-1200fs²



    Chirped Mirror 105234
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-14°,1045nm)>99.9%, GDD=-1200fs²



    Laser mirror 109159
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1047nm)>99.9%, GDD=-1000fs²



    Chirped Mirror 107066
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRs,p(0-10°,1047nm)>99.9%, GDD=-1000fs²



    Chirped Mirror 104680
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-12°,1064nm)>99.9%, GDD=-1000fs²



    Chirped Mirror 104357
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1064nm)>99.9%, GDD=-650fs²



    Chirped Mirror 105752
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 50 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-12°,1064nm)>99.9%, GDD=-1000fs²



    Chirped Mirror 104267
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1064nm)>99.9%, GDD=-325fs²



    Chirped Mirror 105753
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-12°,1064nm)>99.9%, GDD=-1000fs²



    Chirped Mirror 104356
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1064nm)>99.9%, GDD=-650fs²



    Chirped Mirror 109199
    Corning 7980 2F or equal

    ∅ = 50 mm
    t = 3.05 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-20°,1070nm)>99.95%



    Chirped Mirror 102136
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRu(0-10°,1090-1160nm)>99.9%, GDD=-350fs²



    Short Wave Pass Filter 102024
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 50 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1150-1380nm)>99.9%, GDD=-70fs²

    R(0°,1030nm)<10%


    Rear Side   (S1)

    AR(0°,1030nm)<0.15%



    Short Wave Pass Filter 102025
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 100 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1150-1380nm)>99.9%, GDD=-70fs²

    R(0°,1030nm)<10%


    Rear Side   (S1)

    AR(0°,1025-1035nm)<0.2%



    Short Wave Pass Filter 101969
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 50 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1150-1380nm)>99.9%, GDD=-70fs²

    R(0°,1030nm)<10%


    Rear Side   (S1)

    AR(0°,1030nm)<0.15%



    Short Wave Pass Filter 101970
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 100 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1150-1380nm)>99.9%, GDD=-70fs²

    R(0°,1030nm)<10%


    Rear Side   (S1)

    AR(0°,1025-1035nm)<0.2%



    Short Wave Pass Filter 103133
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 50 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1170-1470nm)>99.8%

    R(0°,1040-1090nm)<10%

    GDD(0°,1200-1400nm)=-60fs²


    Rear Side   (S1)

    AR(0°,1000-1100nm)<0.25%



    Chirped Mirror 105262
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1185-1365nm)>99.9%, GDD=-150fs²



    Chirped Mirror 105344
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1200-1300nm)>99.9%, GDD=-250fs²



    Chirped Mirror 105263
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1200-1300nm)>99.9%, GDD=-250fs²



    Short Wave Pass Filter 102046
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 100 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1200-1400nm)>99.8%, GDD=-60fs²

    R(0°,1040-1090nm)<10%


    Rear Side   (S1)

    AR(0°,1000-1100nm)<0.25%



    Short Wave Pass Filter 106968
    Corning 7980 2F or equal

    ∅ = 10 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane
    Wedge = 30ʹ

    Front Side   (S2)

    HR(0°,1450-1700nm)>99.9%, GDD=-120fs²

    R(0°,950-1000nm)<3%


    Rear Side   (S1)

    AR(0°,976nm)<0.5%

    AR(0°,1560nm)<0.5%



    Chirped Mirror 106971
    Corning 7980 2F or equal

    ∅ = 10 mm
    t = 6.35 mm

    Front Side  (S2)
    concave
    r = 200 mm
    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,1450-1700nm)>99.9%

    R(0°,950-1000nm)<3%


    Rear Side   (S1)

    AR(0°,976nm)<0.5%

    AR(0°,1560nm)<0.5%



    Turning Mirror 102344
    Corning 7980 2F or equal

    ∅ = 12.7 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRs(30°,1520-1740nm)>99.9%, GDD=-100fs²



    Turning Mirror 102343
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRs(30°,1580nm)>99.9%, GDD=-100fs²



    Turning Mirror 102342
    Corning 7980 2F or equal

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HRs(30°,1590nm)>99.9%, GDD=-550fs²



    Chirped Mirror 160660
    Infrasil 302(Standard item)

    ∅ = 25 mm
    t = 6.35 mm

    Front Side  (S2)
    plane

    Rear Side  (S1)
    plane

    Front Side   (S2)

    HR(0°,2010-2100nm)>99.9%, GDD=-500fs²




    可选配置表

    无

    新品推荐

    • 正品行货 品类齐全
    • 多仓直发 货期保证
    • 会员特价 满额包邮
    • 阳光采购 一站服务

    ⇪
