模拟 - 垂直通道

模拟带宽 @ 50Ω (-3dB)

1 GHz

上升时间

430 ps（典型）

输入通道数

4

垂直分辨率

8-bits; up to 11-bits with enhanced resolution (ERES)

灵敏度

50 Ω: 1mV/div - 1 V/div; 1 MΩ: 1 mV/div - 10 V/div

DC直流增益精度

±(1.5%) Full Scale, Offset at 0V, > 5mV/div; ±(2.5%) < 5   mV/di

BW带宽限制

20 MHz, 200 MHz

最大输入电压

50 Ω: 5 Vrms, ±10 V Peak; 1 MΩ: 400 V max (DC + Peak AC ≤ 10 kHz)

输入耦合方式

50 Ω: DC, GND; 1 MΩ: AC, DC, GND

输入阻抗

50 Ω ±2.0%, 1 MΩ ±2.0% || 16 pF

偏置电压范围

50 Ω: 1 mV - 19.8 mV: ±2 V, 20 mV - 100 mV: ±5 V, 102 mV - 198   mV: ±20 V, 200 mV - 1 V: ±50 V

1 MΩ: 1 mV - 19.8 mV: ±2 V, 20 mV - 100 mV: ±5 V, 102 mV - 198   mV: ±20 V, 200 mV - 1 V: ±50 V,

  1.02 V - 1.98 V: ±200 V, 2 V - 10 V: ±400 V

偏置精度

±(1.0% of offset value + 1.5%FS + 1 mV)

模拟-采集

采样率（单次）

2 GS/s    (4 GS/s   interleaved)

采样率（重复）

50 GS/s

标配存储深度 ( 4 Ch / 2 Ch)

10 Mpts / 20 Mpts

采样模式

Real Time, Roll, RIS (Random Interleaved Sampling),

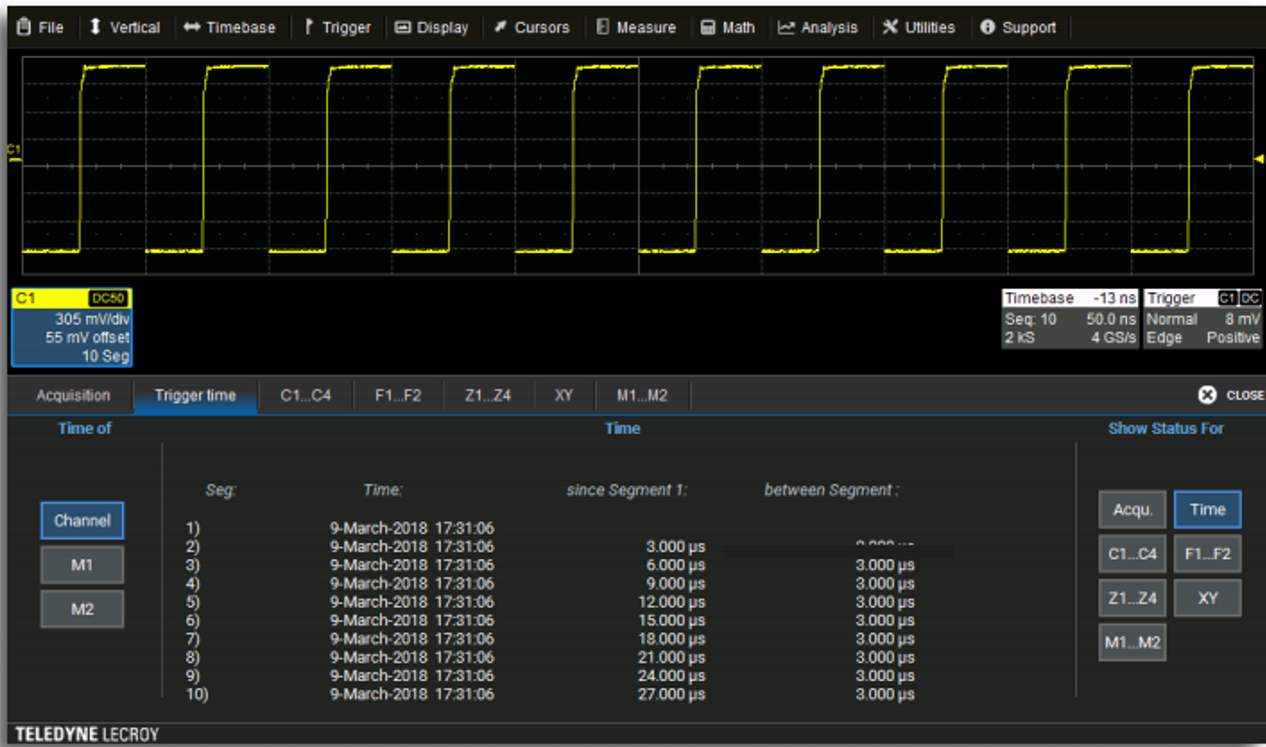

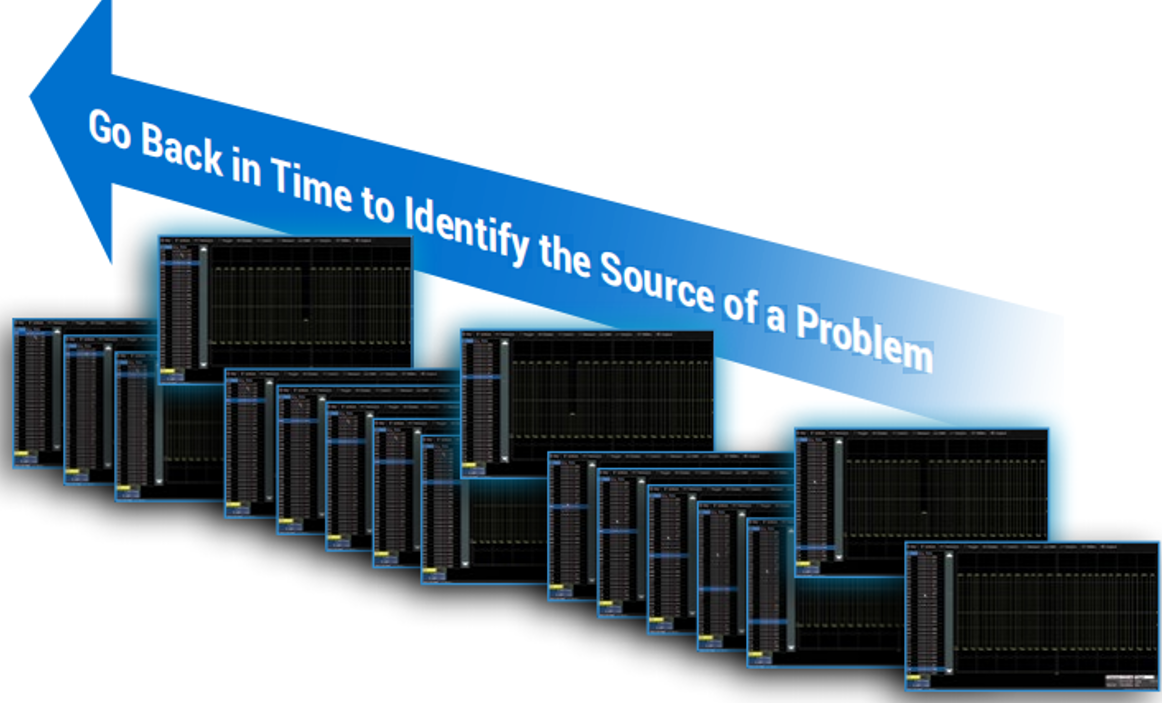

Sequence (Segmented Memory up to 1,000 segments with 1μs minimum   intersegment time)

实时模式时基范围

500 ps/div - 100 s/div

RIS模式时基范围

500 ps/div - 10 ns/div

滚动模式时基范围

Up to 100 s/div (roll mode is user selectable at ≥ 50 ms/div)

时基精度

±10 ppm measured over > 1ms interval

数字通道-垂直和采集（仅限WS3K-MSO选项）

输入通道数

16 Digital Channels

阈值分组

Pod 2: D15 - D8, Pod 1: D7 - D0

阈值选择

TTL(+1.4V), 5V CMOS (+2.5V), ECL (-1.3V) or User Defined

最大输入电压

±30V Peak

阈值精度

±(3% of threshold setting + 100mV)

输入动态范围

±20V

最小输入电压波动

500mVpp

输入阻抗（飞行引线）

100 kΩ || 5 pF

最大输入频率

125 MHz

采样速度

500 MS/s

记录长度

10MS - 16 Channels

最小可检测脉冲宽度

4 ns

通道间倾斜

± (1 digital sample interval)

用户定义的阈值范围

±10V in 20mV steps

触发系统

触发模式

Auto, Normal, Single, Stop

触发源

Any input channel, External, Ext/5, or line; slope and level   unique to each source (except for line trigger)

耦合方式

DC, AC, HFREJ, LFREJ

触发前延迟

0-100% of full scale

触发后延迟

0-10,000 Divisions

触发释抑时间

10ns up to 20s or 1 to 100,000,000 events

内部触发电平范围

±4.1 Divisions

外部触发电平范围

Ext: ±610mV, Ext/5: ±3.05V

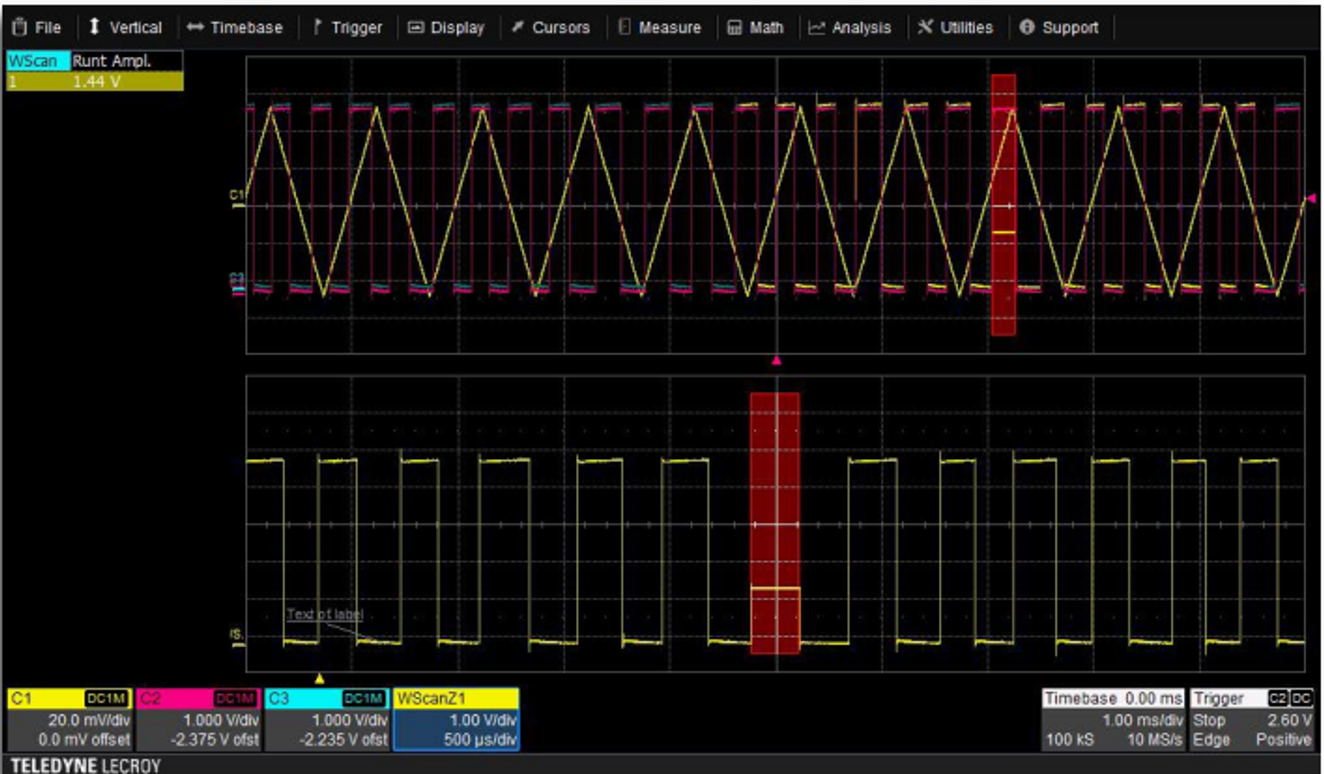

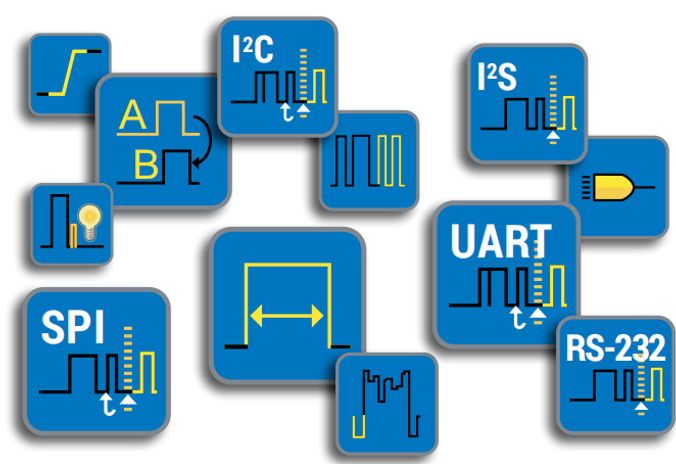

触发类型

Edge, Width, Logic (Pattern), TV (NTSC, PAL, SECAM, HDTV - 720p,   1080i, 1080p), Runt, Slew Rate,

Interval (Signal or Pattern), Dropout, Qualified (State or Edge);   External and Ext/5 support edge trigger only.

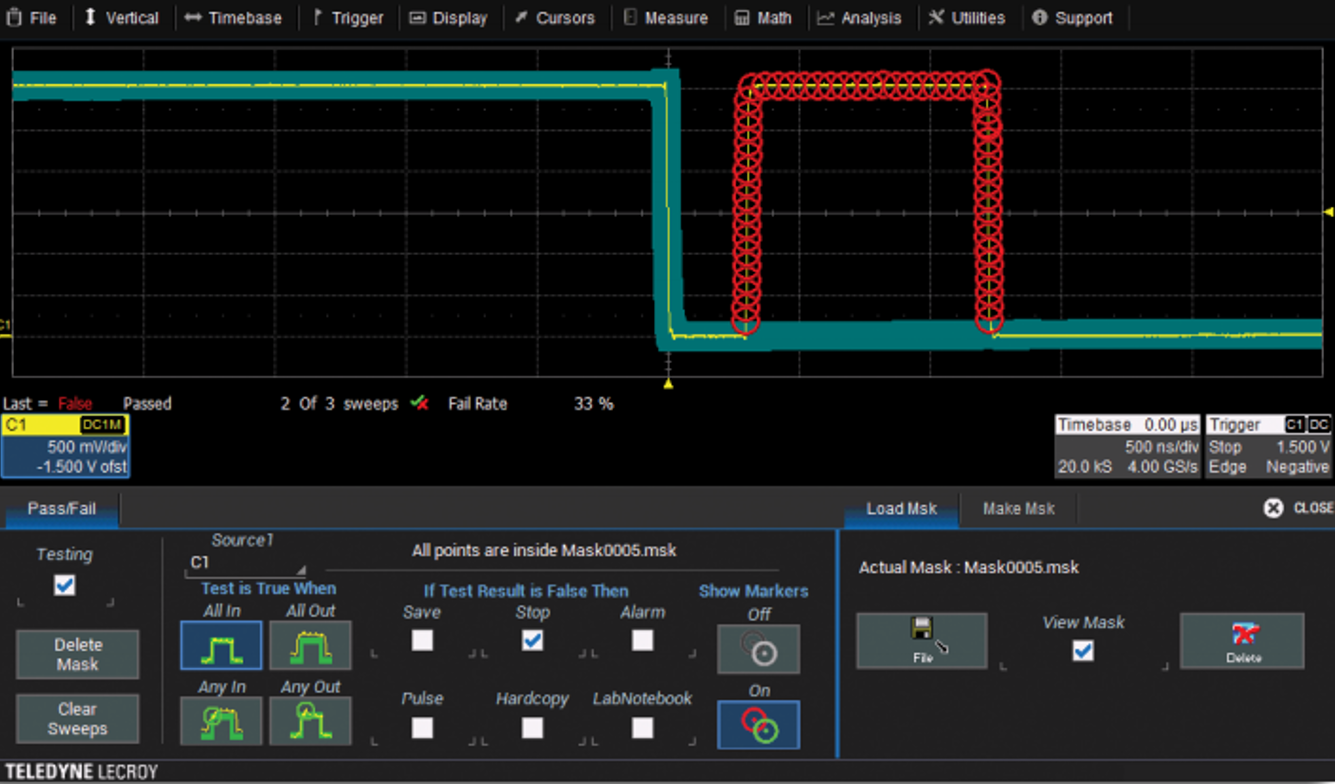

测量、区域放大和数学工具

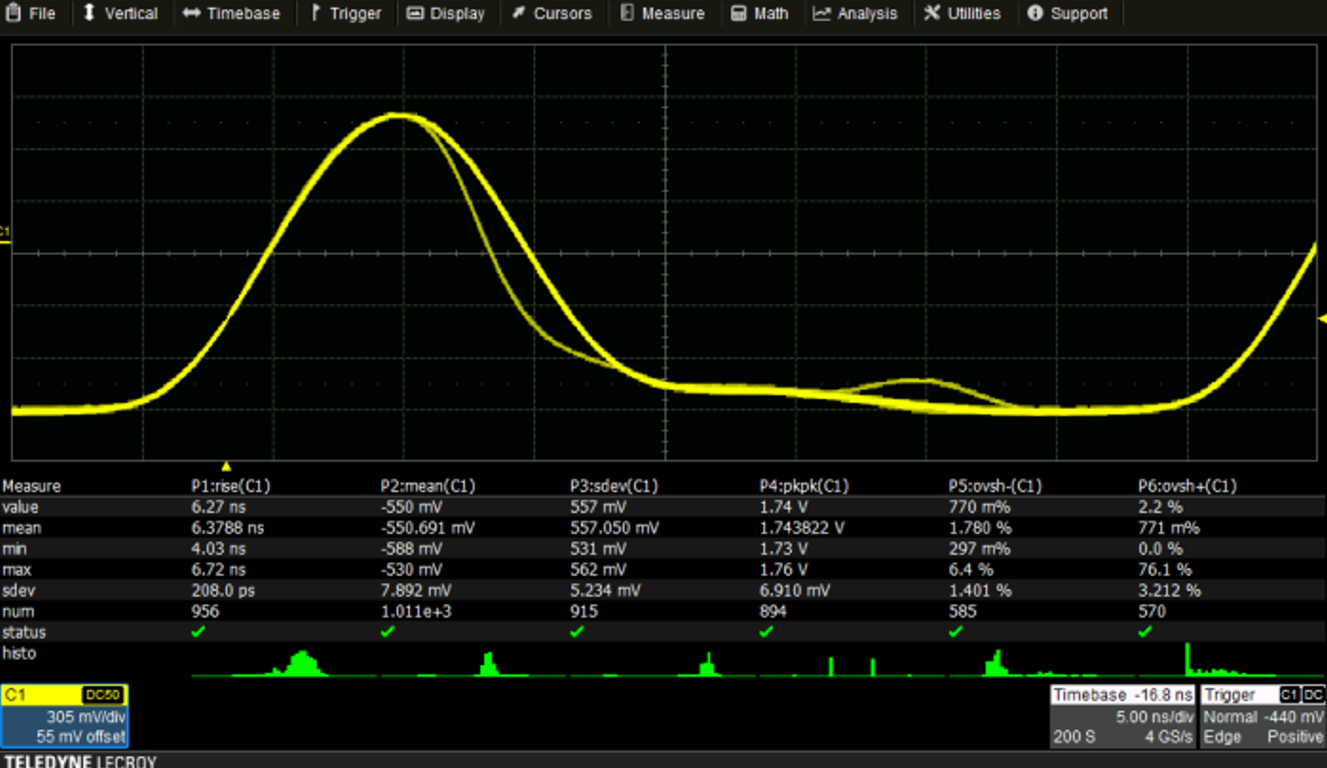

测量参数

Measurement Parameters Up to 6 of the following parameters can be   calculated at one time on any waveform: Amplitude, Area, Base, Delay, Duty   Cycle, Fall Time (90%–10%), Fall Time (80%–20%), Frequency, Maximum, Mean,   Minimum, Overshoot+, Overshoot-, Peak-Peak, Period, Phase, Rise Time   (10%–90%), Rise Time (20%–80%), RMS, Skew, Standard Deviation, Top, Width+,   Width-. Statistics and histicons can be added to measurements. Measurements   can be gated

区域放大

Use front panel QuickZoom button, or use touch screen or mouse to   draw a box around the zoom area.

数学运算

Up to 2 of the following functions can be calculated at one time:   Sum, Difference, Product, Ratio, Absolute Value, Average, Derivative,   Enhanced Resolution, Envelope, Floor, Integral, Invert, Reciprocal, Rescale,   Roof, SinX/x, Square, Square Root, Trend, Zoom and FFT (up to 1 Mpts with   power spectrum output and rectangular, VonHann, and FlatTop windows).

探头

标配探头

One PP020 (5mm) per channel

探头系统

BNC and Teledyne LeCroy ProBus for Active voltage, current and differential   probes

显示系统

显示屏尺寸

10.1” widescreen capacitive touch screen

显示屏分别率

1024 x 600

接口

以太网接口

10/100Base-T Ethernet interface (RJ-45 connector)

可移动存储

(1) MicroSD Port - 16 GB micro SD card installed standard

USB接口

(4) USB 2.0 Ports Total – (2) Front USB 2.0 Ports

USB硬件驱动接口

(1) USBTMC

GPIB接口（选件）

Supports IEEE – 488.2

外借显示器接口

Standard DB-15 connector (support resolution of 1024x600)

远程控制

Via Windows Automation, or via Teledyne LeCroy Remote Command Set

网络通信标准

VICP and LXI compatible

供电要求

电压

100 - 240 VAC ± 10% at 50-60 Hz +/-5%; 100 - 120 VAC ± 10% at 400   Hz +/- 5%; Automatic AC Voltage Selection

功耗（标准）

80 W / 80 VA

功耗（最大）

150 W / 150 VA (with all   PC peripherals, digital leadset and active probes connected to 4 channels)

使用环境

温度

Operating: 0 °C to 50 °C; Non-Operating: -30 °C to 70 °C

湿度

Operating: 5% to 90% relative humidity (non-condensing) up to ≤   30 °C, Upper limit derates to 50% relative humidity

(non-condensing) at +50 °C

Non-Operating: 5% to 95% relative humidity (non-condensing) as   tested per MIL-PRF-28800F

海拔高度

Operating: 3,048 m (10,000 ft) max at ≤ 25C; Non-Operating: Up to   12,192 meters (40,000 ft)

尺寸

尺寸(HWD)

10.63”H x 14.96”W x 4.92”D (270 mm x 380 mm x 125 mm)

重量

4.81 kg (10.6 lbs)

认证

CE认证

Low Voltage Directive 2014/35/EU; EN 61010-1:2010, EN   61010-2-030:2010

EMC Directive 2014/30/EU; EN 61326-1:2013, EN61326-2-1:2013;   RoHS2 Directive 2011/65/EU

UL and cUL Listing

UL 61010-1, UL 61010-2-030:2010, 3rd Edition; CAN/CSA C22.2 No. 61010-1-12

数字电压表（可选）

功能

ACrms, DC, DCrms, Frequency

分辨率

ACV/DCV: 4 digits, Frequency: 5 digits

测量速率

100 times/second, measurements update on the display 5   times/second

自动设置垂直量程

Automatic adjustment of   vertical settings to maximize the dynamic range of measurements

概览

直流偏置

最大频率

25MHz

范围（直流）

±3V   (HiZ); ±1.5V (50 Ω)

通道数

1

偏置精度

±(1% of offset value + 3 mV)

采样率

125 MS/s

波形输出

任意波形长度

16 kpts

阻抗

50 Ω ± 2%

频率分辨率

1 μHz

电压保护

Short-circuit protection

垂直分辨率

14-bit

正弦波频谱纯度

垂直范围

±3V (HiZ); ±1.5V (50 Ω)

SFDR (Non Harmonic) @1.265Vpp

波形类型

Sine, Square, Pulse, Ramp,   Noise, DC

DC-1 MHz

-60dBc

频率参数

1 MHz - 5 MHz

-55dBc

正弦波

1 μHz - 25 MHz

5 MHz - 25 MHz

-50dBc

方波/脉冲波

1 μHz - 10 MHz

Harmonic Distortion @1.265Vpp

斜波/三角波

1 μHz - 300 KHz

DC - 5 MHz

-50dBc

噪声波

25 MHz (-3dB)

5 MHz - 25 MHz

-45dBc

分辨率

1 μHz

方波/脉冲波

精度

±50 ppm, over temperature

上升/下降时间

24 ns (10% - 90%)

老化

±3 ppm/year, first year

过冲

3% (typical - 1 kHz,   1 Vpp)

输出规格

脉冲宽度

50 ns min.

振幅

4 mVpp - 6 Vpp (HiZ); 2 mVpp - 3 Vpp(50 Ω)

抖动

500ps + 10ppm of   period (RMS cycle to cycle)

垂直精度

±(0.3dB + 1 mV)

斜波/三角波

振幅平坦度

±0.5dB

线性度

0.1% of Peak value   output (typical - 1 kHz, 1 Vpp,

100% symmetric)

对称性

0% to 100%
