测试波长

405 nm

488 nm

630 nm

780 nm

980 nm

工作波长

400 - 680 nm

460 - 700 nm

620 - 850 nm

770 - 1100 nm

970 - 1550 nm

截止波长

380±20 nm

420±30 nm

570±50 nm

710±60 nm

920±50 nm

光纤类型

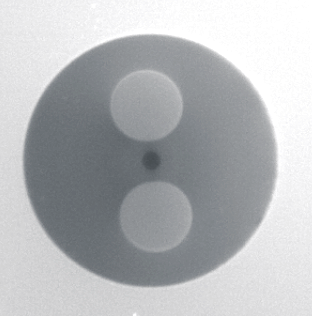

PM-S405-XP(Panda)

PM460-HP(Panda)

PM630-HP(Panda)

PM780-HP(Panda)

PM980-XP(Panda)

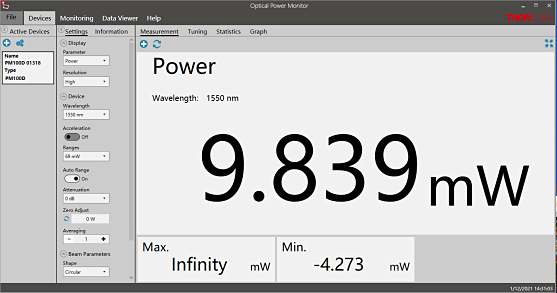

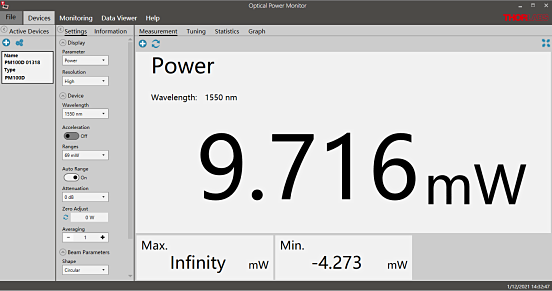

Max. 插入损耗a

1.5 dB

1.5 dB

1.2 dB

1.0 dB

0.7 dB

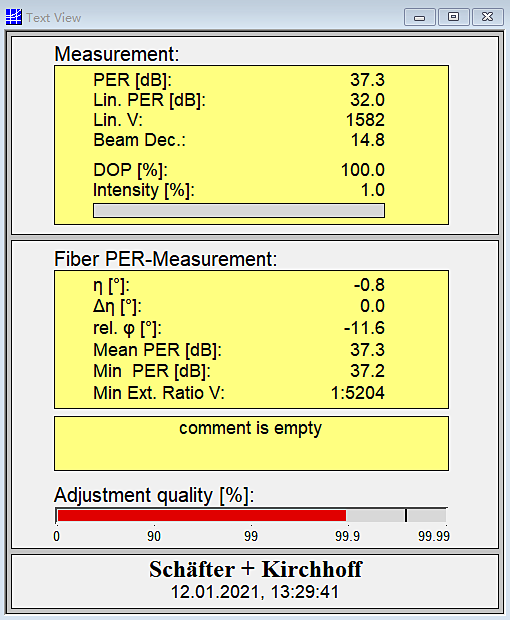

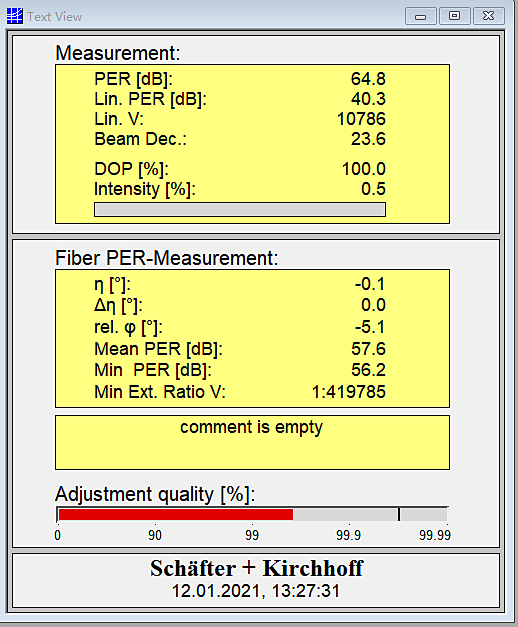

z低消光比a

15 dB

18 dB

20 dB

20 dB

22 dB

模场直径b

3.6 ± 0.5 um @ 405 nm

3.4 um @ 488 nm

4.2 um @ 630 nm

4.9 um @ 780 nm

6.6 ± 0.7 um @ 980 nm

数值孔径c

0.12

0.12

0.12

0.12

0.12

回波损耗a

60 dB Typical

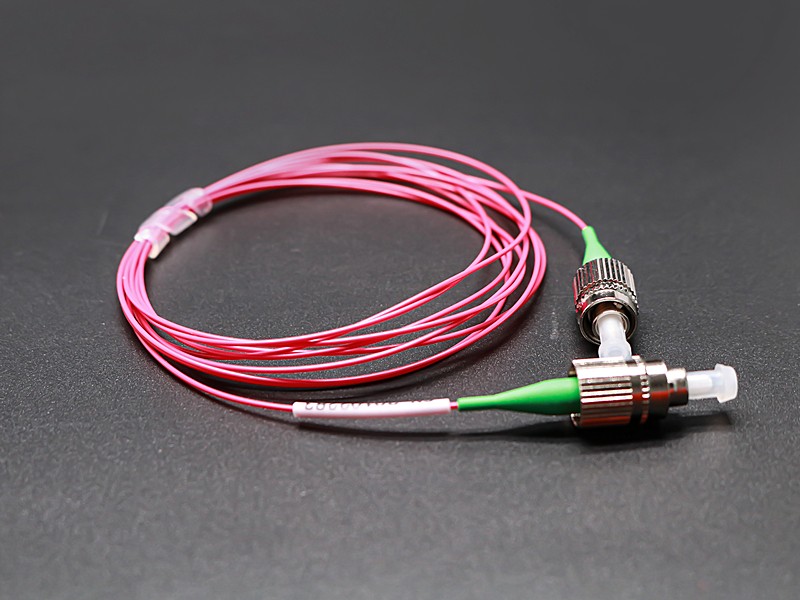

光纤接头

FC/APC

接头凹槽宽度

2.00 ± 0.02 mm

对准方式

Narrow Key Aligned to Slow Axis

光纤长度

1.0 +0.075/-0 m for Item Numbers Ending   in -1
  2.0 +0.075/-0 m for Item Numbers Ending in -2
  5.0 +0.075/-0 m for Item Numbers Ending in -5
  10.0 +0.075/-0 m for Item Numbers Ending in -10

松套管类型

900um 2mm 3mm 铠甲可选

操作温度

0 to 70 ℃

存储温度

-45 to 85 ℃

测试波长

1064 nm

1310 nm

1550 nm

2000 nm

工作波长

970 - 1550 nm

1270 - 1625 nm

1440 - 1625 nm

1850 - 2200 nm

截止波长

920 ±50 nm

1200 ±70 nm

1370 ±70 nm

1720 ±80 nm

光纤类型

PM980-XP(Panda)

PM1300-XP(Panda)

PM1550-XP(Panda)

PM2000(Panda)

Max. 插入损耗a

0.7 dB

0.5 dB

0.5 dB

0.5 dB

z低消光比a

22 dB

23 dB

23 dB

23 dB

模场直径b

7.7 um @1064 nm

9.3 ±0.5 um @ 1300 nm

9.9 ±0.5 um @ 1550 nm

8.6 um @ 2000 nm

数值孔径c

0.12

0.13

0.125

0.20

回波损耗a

60 dB Typical

光纤接头

FC/APC

接头凹槽宽度

2.00 mm ±0.02

对准方式

Narrow Key Aligned to Slow Axis

光纤长度

1.0 +0.075/-0 m for   Item Numbers Ending in -1
  2.0 +0.075/-0 m for Item Numbers Ending in -2
  5.0 +0.075/-0 m for Item Numbers Ending in -5
  10.0 +0.075/-0 m for Item Numbers Ending in -10

松套管类型

900um 2mm 3mm 铠甲可选

操作温度

0 to 70 ℃

存储温度

-45 to 85℃
